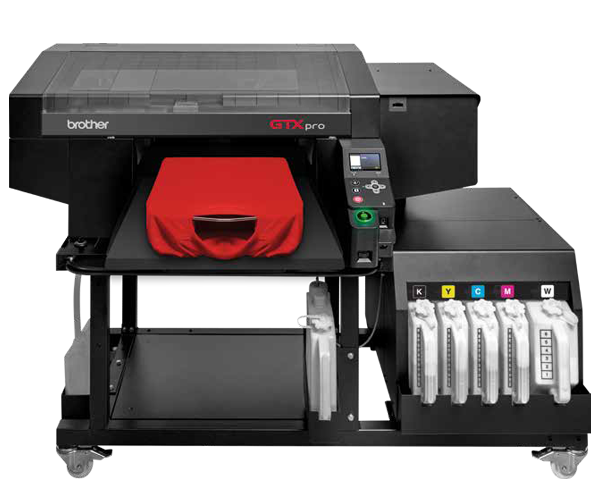

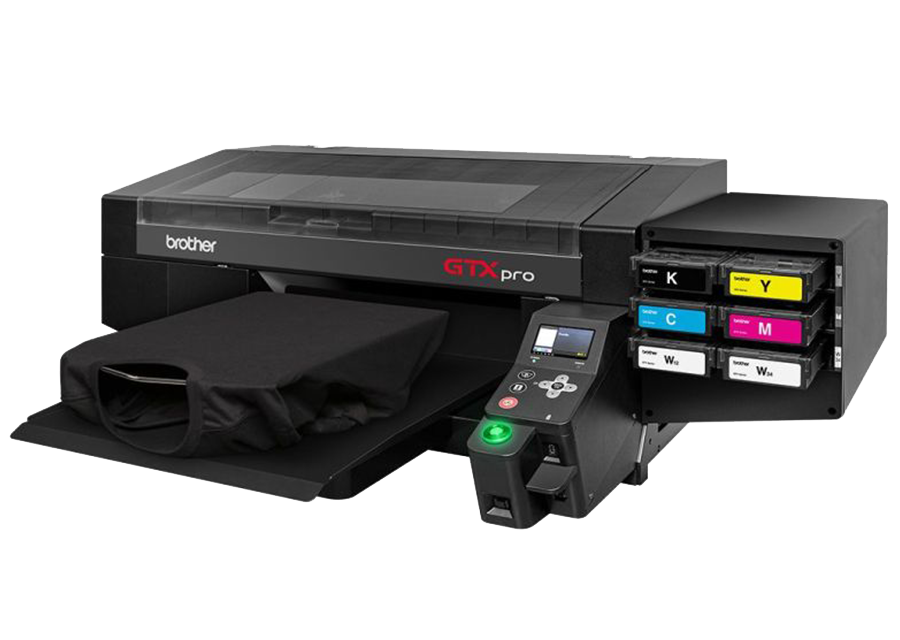

GTX Pro
5.0
Brands   :
Category   :เครื่องพิมพ์เสื้อ Brother GTX
Less is more. Less is pro.
With the GTXpro you get the benefits of an operator friendly high-end direct-to-garment printer with the best technology made by Brother.
รับประกัน 1 ปี
ติดตั้งฟรี

Less ink consumption
New white print head technology with internal ink circulation developed by Brother. This results in using less white ink for cleaning.

Less time needed
The new design of the white print head allows the use of more nozzles compared to previous models. This allows up to 10% faster printing with special “High Speed print mode” print settings.

Less maintenance
We reduced the automatic cleaning processes for increased productivity drastically!

Less environmental pollution
OekoTex Passport and GOTS 5.0 certified Innobella Textile Inks.

Less operator problems
Installation and training by an DTG technician authorized by Brother. The new sensor technology detects, if the platen is too low in order to reduce ink mist and ensure print quality. Print Reservation Function for higher productivity.

Less restrictions
Easy printing on a wide variety of textiles such as trousers, shoes, caps and much more. Printing on various materials is possible, from cotton to silk or polyester – all with the same ink. Compact industrial design and size suitable for all kind of production environment. Easy to move and add to any production – for a flexible process modulation of your production.

Network and USB connection
for full industrial production integration



The new industrial white print head
The newly designed white print head with internal ink circulation reduces the amount of white ink needed for cleaning.

High-speed print mode
The newly designed white print head has even more nozzles than its predecessors. This allows printing in high-speed mode, up to 10 % faster!

Optimized maintenance - less time consuming
The automatic cleaning processes have been reduced to increase productivity drastically!

Environmentally friendly
OekoTex Passport and GOTS 5.0 certified Innobella textile inks
Authorized dealer network
Installation and training will be done by an authorized DTG technician of Brother

Additional height sensor
For excellent print quality, the new sensor technology controls the optimum height of the print platen in order to prevent ink mist

Less waiting time
By starting to print automatically without manual confirmation at the end of systemically relevant processes, like print file loading or automatic cleaning e.g.

Flexibility
Easy printing on a variety of garments like trousers, shoes, caps, and many more. In addition, you can print on cotton, silk, and polyester, all with the same ink. Exactly! All with the same ink!

Compact machine design
Our compact machine design gives you the possibility to react to varying production numbers and to optimize processes in a flexible way.
Information
Printing Method
Direct Inkjet Garment Printer
Max printing area
16“ x 21“ (40,64cm x 53,54cm)
Platen Height Adjust
14“ x 16“ (35,54cm x40,65cm)
Machine size L x W x H
1400mm x 1300mm x 550mm
Machine Weight
Approx. 120kg including Platen
Ink Type
Water-based pigment ink (200 and 500ml pouches available)
Ink Color
CMYKW
Ink volume
-
Number of Print Heads
2
Print Head Type
Brother manufactured on demand piezo head
Printed Substrate
-
Environment
Operating conditions: 50°F(10°C)to 95°F(35°C) Humidity: 20-85% RH, Printing conditions: 64°F(18°C)to 86°F(30°C) Humidity: 35-85% RH
Power consumption
0.8A (average) (Reference: 0.4A (during circulation))
Power supply
AC 100V-240V, 50/60Hz
Pre-Treatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer‘s instructions. Pre-treatment is necessary for white ink.
Software
Operating system requirements
1200 dpi x 1200 dpi
Print Mode
Single or double for CMYK. Underbase and highlight for white
Operating system requirements
Windows 8.1 (64 bit), Windows 10 (64 bit), macOS 10.14 Mojave, macOS 10.15 Catalina
Print Driver
2GHz CPU, 4GB RAM
Ink Cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. Conveyor oven is recommended to support high productivity of the printer at 320°F (160°C) and 3.5 minutes duration. Time and temp. may vary depending on which manufacturer‘s dryer is used.
USB Flash Memory
USB2.0, LAN (10 BASE-T, 100 BASE-TX, 1000 BASE-T), USB Flash Memory (Under 32GB, FAT32 format)
Recommended PC Applications
CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, CorelDRAW® 2018/2019 (Windows)
Standard Interfaces
-

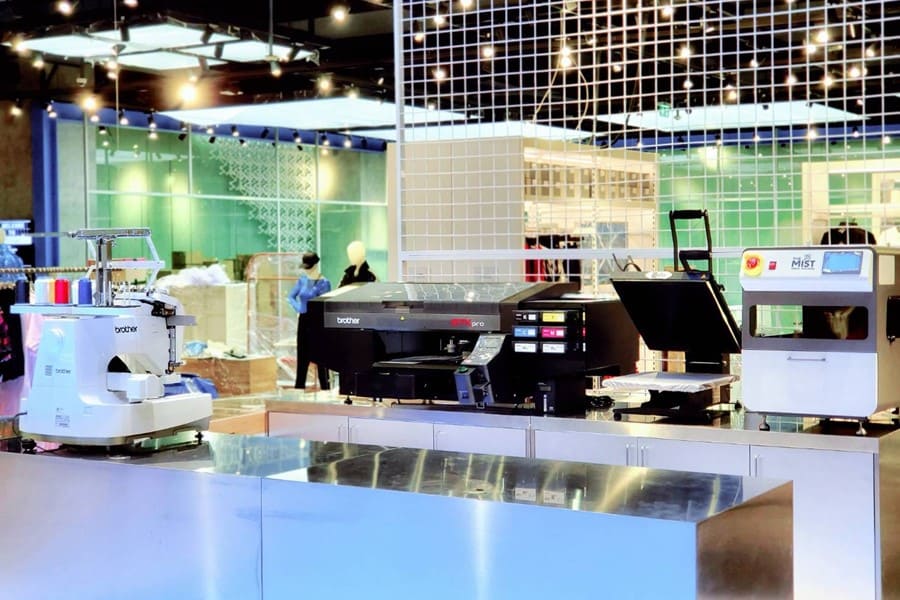

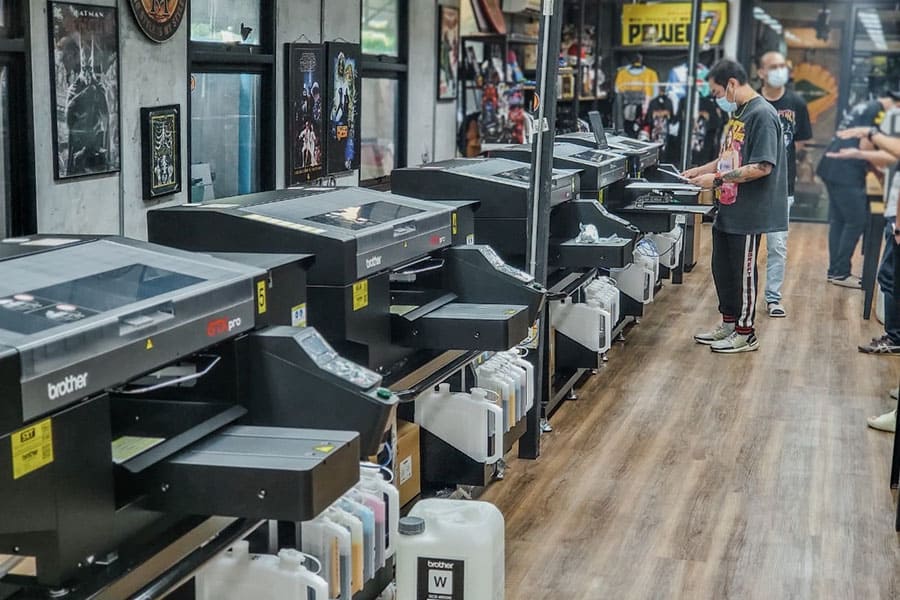

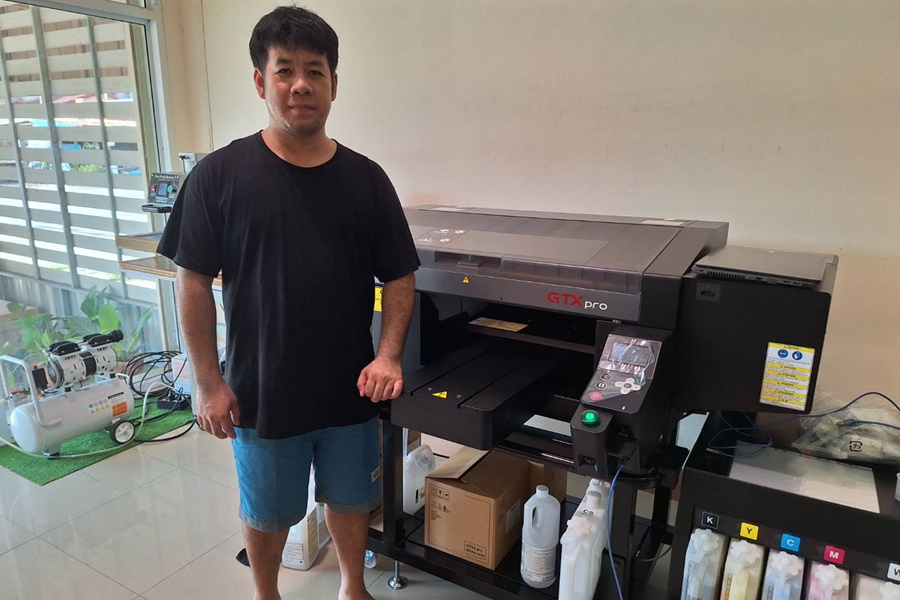

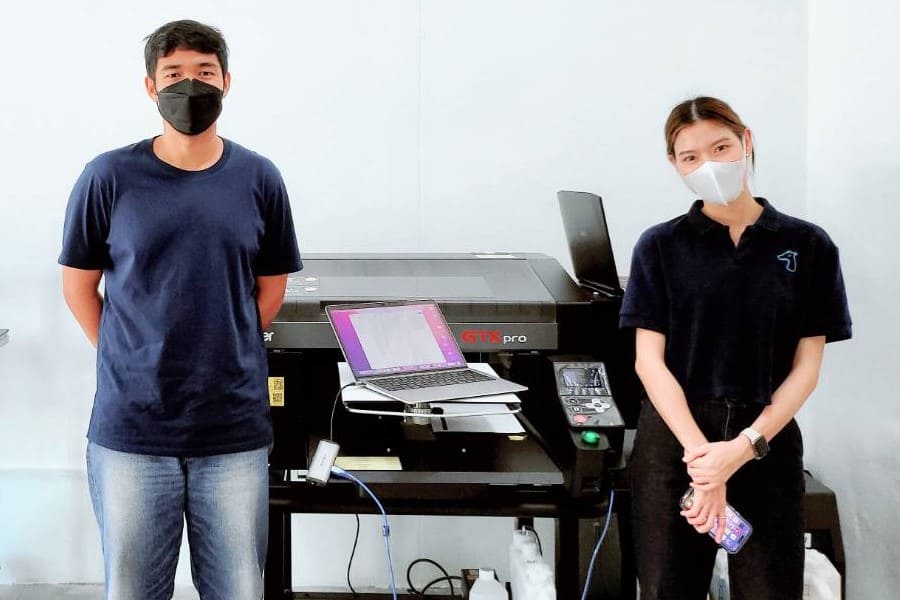

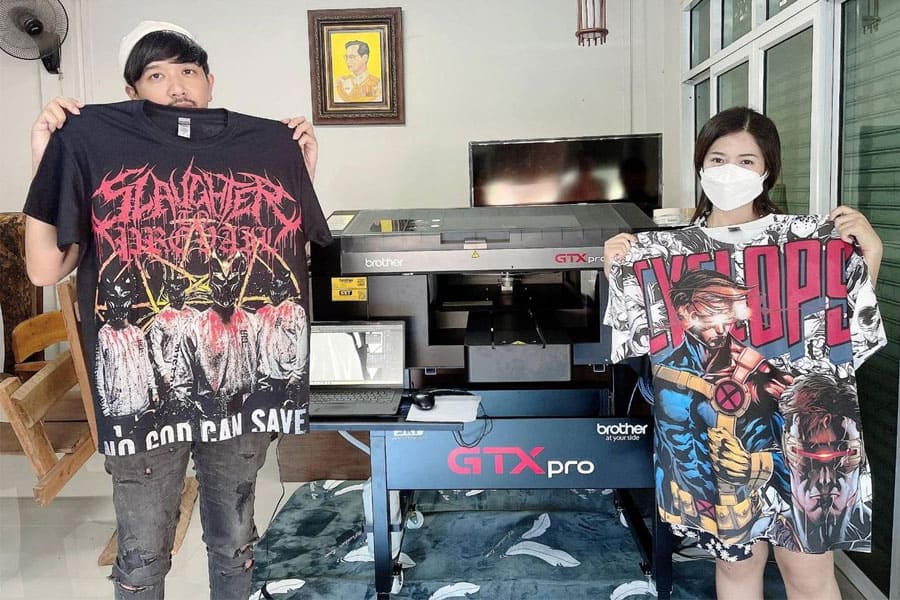

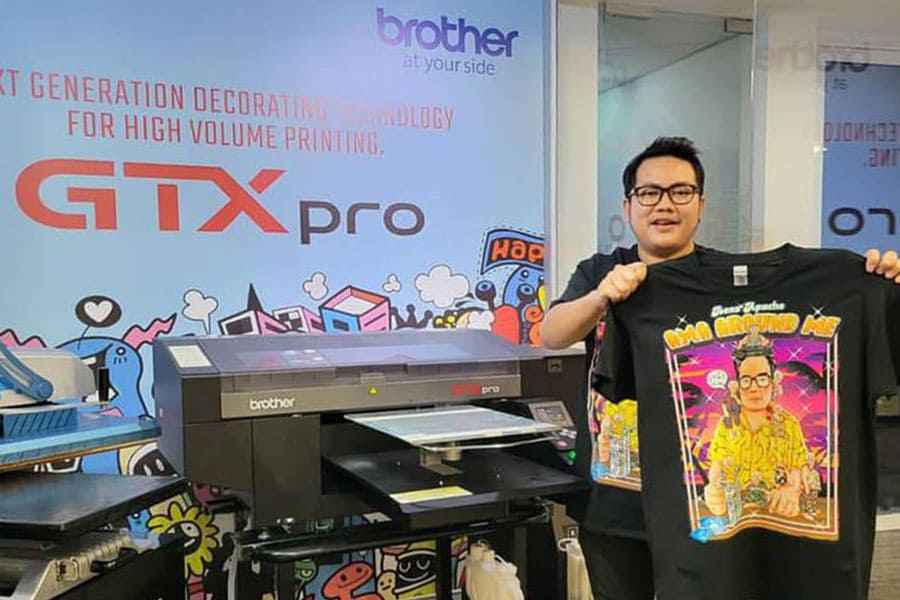

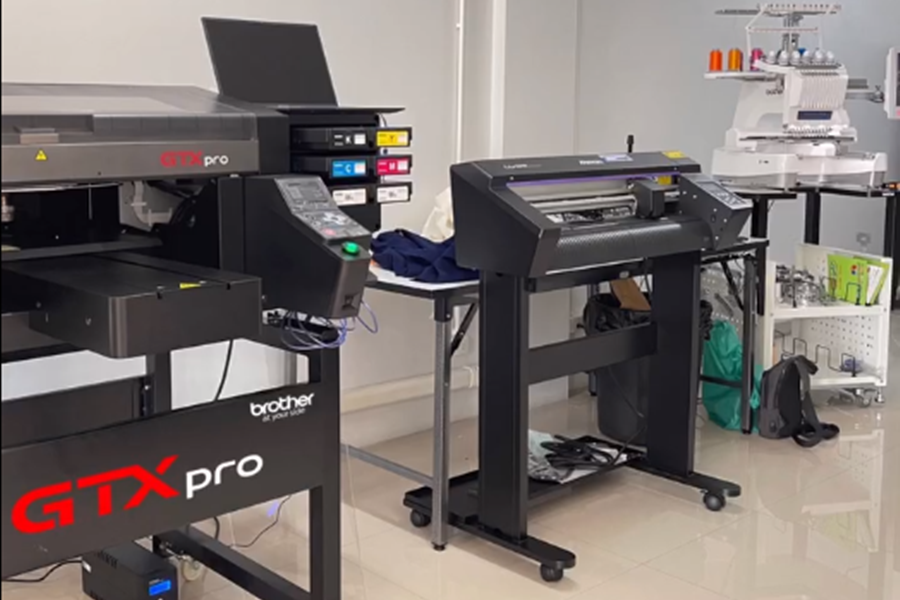

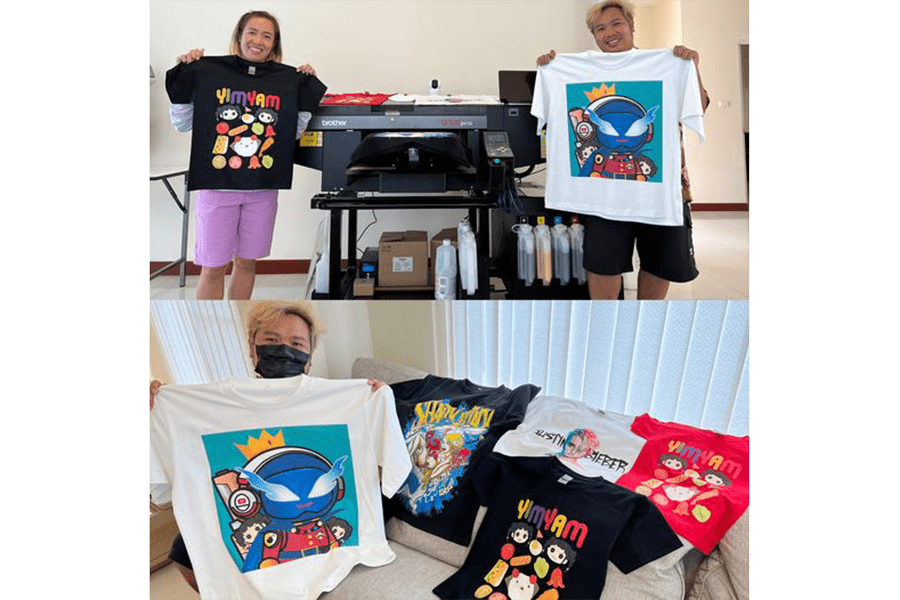

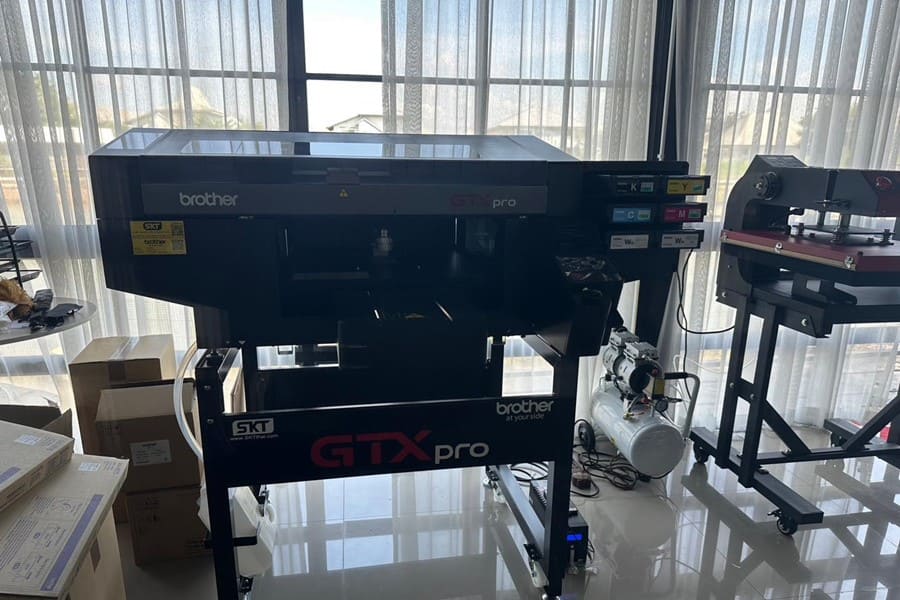

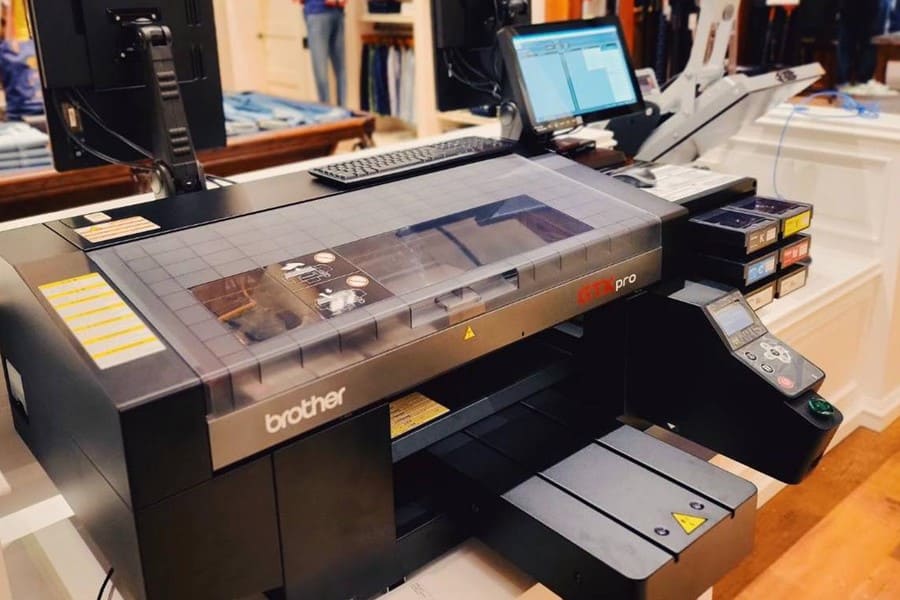

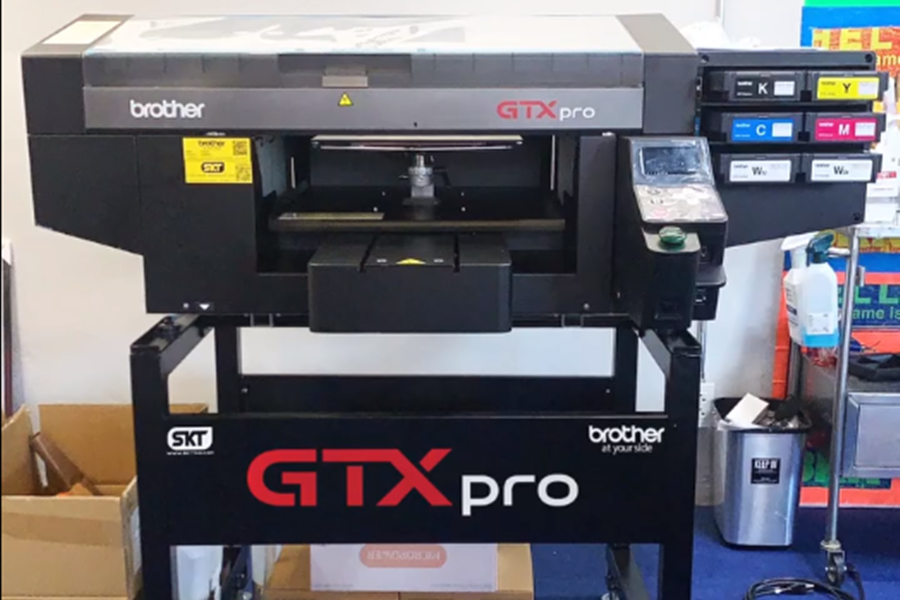

ผลงานการติดตั้ง
