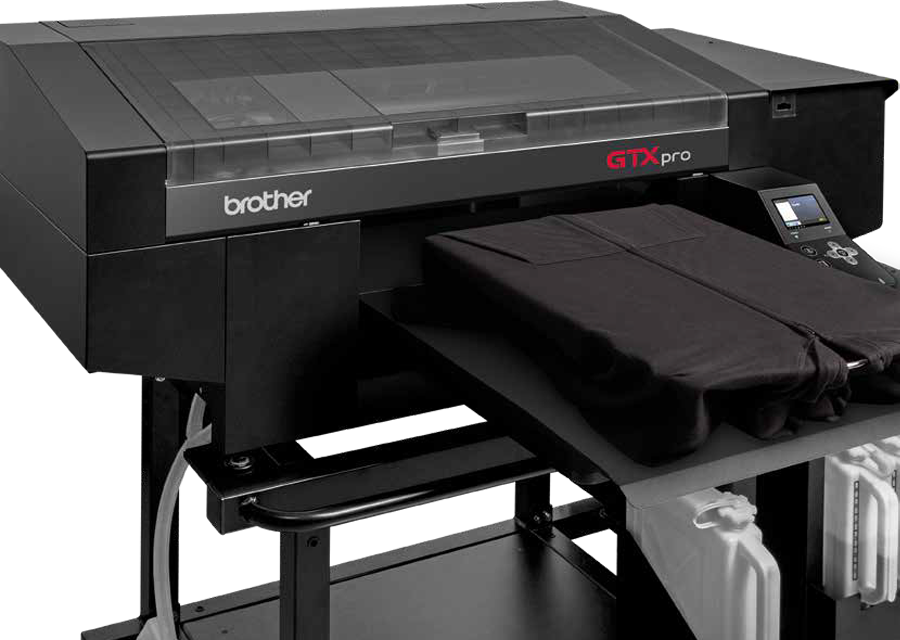

GTX Pro Bulk
5.0
Brands   :
Category   :เครื่องพิมพ์เสื้อ Brother GTX
รับประกัน 1 ปี
ติดตั้งฟรี
MASS PRODUCTION AND FLEXIBILITY COMBINED IN ONE MACHINE
The time has come to go one step further and combine the advantages of the GTX with an innovative bulk ink system, together with a new, improved print head and a whole range of features. The result is a space-saving and reasonably priced industrial direct-to-garment printer for mass production without sacrificing the well-known advantages of the GTX.

Revolutionary New Bulk Ink system
Cost-saving Bulk ink system for high production quantities. Available in 1,8 liter and 18 liter containers.

New Industrial White Print Head Design
New developed white ink print head technology for inside the print head ink circulation.
This results in less white ink waste.

Reduced Maintenance & Time
Less Maintenance - no need for morning preparation anymore. Less waiting time – the new cap design leads to less purging time, the larger colour sub-tanks are refilled during the printing process.
Print reservation function for higher productivity

Optimal Print Height
The new sensor technology detects whether the distance from the print head to the textile is too much and of course also if the textile could touch the print head.
Additional sensor for detecting whether platen is too low, to reduce ink mist and assure print quality.
The low sensor function can be disabled if required.

High Speed Print Mode
The new white ink print head design allows the usage of more nozzles than previous models.
This allows up to 10% faster printing with special print settings.

Network and USB connection
for full industrial production integration
Information
Printing Method
Direct Inkjet Garment Printer
Max printing area
16“ x 21“ (40.64 x 53.34cm)
Platen Height Adjust
-
Machine size L x W x H
1780mm x 1300mm x 1210mm
Machine Weight
approx.165kg
Ink Type
Water based pigment ink
Ink Color
CMYKW
Ink volume
-
Number of Print Heads
2
Print Head Type
On demand piezo head
Printed Substrate
-
Environment
Operating conditions: 50°F(10°C)to 95°F(35°C) Humidity: 20-85% RH
Power consumption
0.8A (average) (Reference: 0.4A - during circulation)
Power supply
AC 100V-240V, 50/60Hz ± 1Hz
Pre-Treatment
Before printing, apply using a manual or automatic device and dry using a heat-press machine according to manufacturer instruction. Pre-treatment is necessary for white ink.
Software
Operating system requirements
1200 dpi x 1200 dpi
Print Mode
Single or multiple for CMYK. Underbase and highlight for white
Operating system requirements
Windows 8.1 (64 bit), Windows 10 (64 bit), Mac OS 10.14 Mojave, Mac OS 10.15 Catalina
Print Driver
CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, Adobe® Photoshop Elements 12/13
Ink Cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. Conveyor oven is recommended to support high productivity of the printer at 320°F (160°C) and 3.5 minutes duration. Time and temp. may vary depending on which manufacturer‘s dryer is used.
USB Flash Memory
USB2.0, LAN (10 BASE-T, 100 BASE-TX), USB Flash Memory (Under 32GB, FAT32 format)
Recommended PC Applications
CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, Adobe® Photoshop Elements 12/13.
Standard Interfaces
XGA (1024×768)

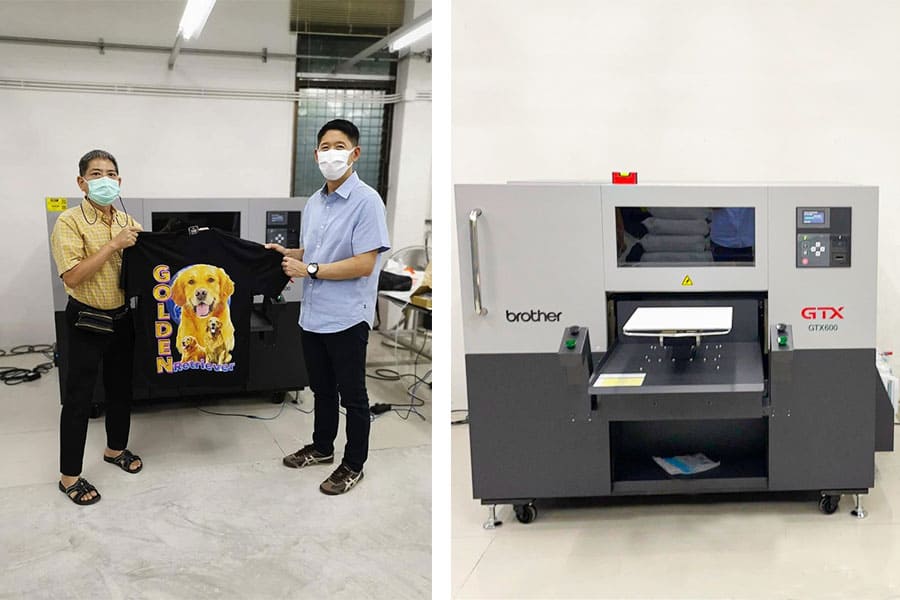

ผลงานการติดตั้ง
