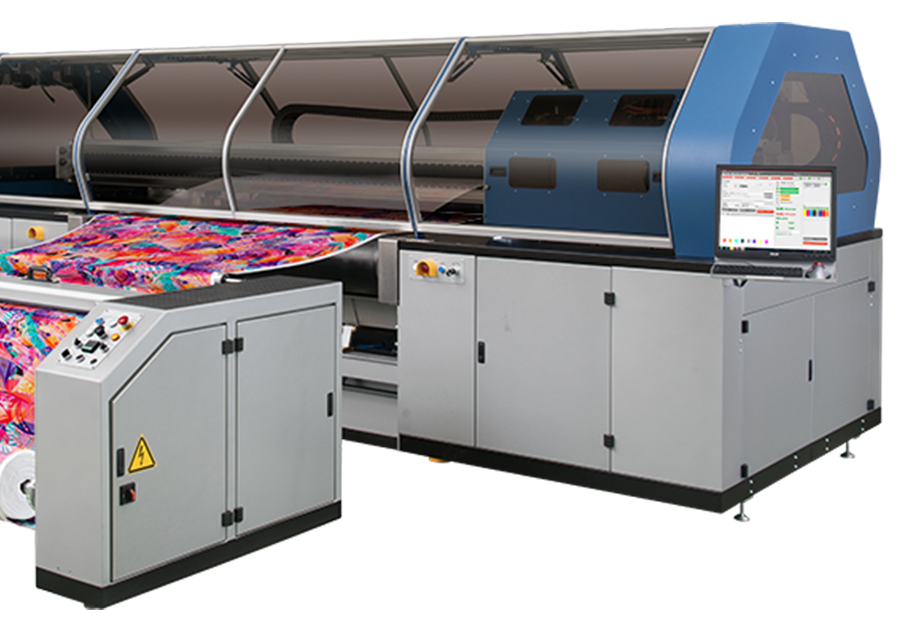

Tiger-1800B MkII : Direct to textile model
5.0
Brands   :
Category   :เครื่องพิมพ์ Sublimation
Textile Printer "Pro series"  1.8m Belt-Type Inkjet Printer High-Speed Range Model (Direct-to-textile / Sublimation-transfer)
Total 16 print heads: 2 x 8 in a staggered layout
Maximum print speed: 385 m2/h
Ask for Infomation
Compare
Interested
Request Quotation
Pro series, with its outstanding stability and high-precision printing technology, is a high-speed range model dedicated to speed and beautiful printing.

The new Tiger-1800B MkII is the successor model to the Tiger-1800B.
New effective functions for high quality and high production and an additional print mode are equipped.


Line-up
  • Direct-to-textile model
    • Total 16 print heads: 2 x 8 in a staggered layout
      * Standard winding unit in this picture
  • Sublimation transfer model
    • Total 8 print heads: 2 x 4 in a staggered layout
      * Jumbo roll winding unit in this picture

Product outline of Textile Printer "Pro series - Tiger-1800B MkII"
Selectable print mode to suit the production (from high-speed to high-quality)
  • Maximum print speeds of up to 385 m2/h in high-speed mode.
  • For the realization of higher quality of print, 1,200 dpi print mode is added and the multi-pass is applied. New!
Mimaki Advanced Pass System (MAPS) delivers stable high-quality printing New!
Droplet print mode selection suitable for print data
Depending on ink type and printing mode, there are 4 different droplet sizes. Droplet print mode can be choose to match the print data from high speed and standard mode.

Nozzle recovery system (NRS): Consecutive operating solution to maintains the productivity New!
Stable and reliable mechanism secures high-speed printing
  • Stable textile transportation mechanism (Twin pressure roller shafts,　Jam sensor, Wrinkle sensor)
  • Degassing module and ink circulation mechanism maintain optimum ink conditions
  • Automatic wiper cleaning
Extensive optional units for accommodating various applications
Extensive lineup of optional devices to be selected according to the type and status of fabric and transfer paper, including the storage after printing.

Large-sized ink tank (10 kg) ensures cost-effective print operation.
The bulk ink supply enables effective long-hour printing while reducing the operational cost.

High-performance software RIP "TxLink3 Standard"
The TxLink3 Standard offers simple RGB and CMYK color replacement on raster and vector data, as well as the ability to produce different color patterns. Moreover, various color replacement functions can represent desired colors.

Direct-to-textile Print speed (Bi-direction)

Mode Resolution Pass Layer Print speed
Draft (3drop) 600 × 600 dpi 1 1 385m2/h
High-speed (4drop) 600 × 600 dpi 1 1 295m2/h
Standard 1 (3drop) 600 × 1,200 dpi 2 1 210m2/h
Standard 2 (4drop) 600 × 1,200 dpi 2 1 155m2/h
High-quality 1 (3drop) 1,200 × 1,200 dpi 2 1 120m2/h
High-quality 2 (4drop) 1,200 × 1,200 dpi 2 1 85m2/h
Mode Draft (3drop)
Resolution 600×600 dpi
Pass 1
Layer 1
Print speed 385m2/h
Mode High-speed (4drop)
Resolution 600×600 dpi
Pass 1
Layer 1
Print speed 295m2/h
Mode Standard 1 (3drop)
Resolution 600×1,200 dpi
Pass 2
Layer 1
Print speed 210m2/h
Mode Standard 2 (4drop)
Resolution 600×1,200 dpi
Pass 2
Layer 1
Print speed 155m2/h
Mode High-quality 1 (3drop)
Resolution 1,200×1,200 dpi
Pass 2
Layer 1
Print speed 120m2/h
Mode High-quality 2 (4drop)
Resolution 1,200×1,200 dpi
Pass 2
Layer 1
Print speed 85m2/h

Print speed
Maximum print speeds of up to 385 m2/h (*) in high-speed mode.
* Draft (3 droplet size) mode (600 × 600 dpi, 1 pass, Bi) Textile width: 1,850 mm
Information
Printhead
16 printheads
(8x2 lines in a staggered layout)
Print resolutions
600 / 1,200dpi
Maximum print width
1,850 mm / 72.8"
Maximum media width
1,900 mm / 74.8"
Roll core diameter
φ400 mm / 15.7" or less *1
Roll outer diameter
-
Roll weight
100 kg / 221 lb or less *1
Power supply
Main unit: 3 phase 380 V ± 10%, 50 / 60 Hz 50 A or less
Operational environment
Temperature: 20 - 25 degC / 68 - 77 degF
Humidity: 35 - 65% Rh (Non condensing)
Power consumption
Heater: 3 phase 380 V ± 10%, 50 / 60 Hz 30 A or less
Dimensions (W × D × H)
Main unit: 5,750 x 2,700 x 2,000 mm
(226.4 x 106.3 x 78.7")
Feeding unit: 2,240 x 475 x 1,167 mm *1
(88.2 x 18.7 x 45.9") *1
Weight
Main unit: 4,800 kg / 10,582 lb
Feeding unit: 130 kg / 287 lb *1
Software
Software
High-performance software RIP "TxLink3 Standard" is bundled.
Ink Type / Color
Reactive: MLRc500
(Acid/Sublimation/Pigment: To be applied later)
Packaging Ink
10 kg (22 lb) ink tank
Loadable ink color
8
Certifications
CE Marking (EMC, Machinery directive, and RoHS)
Interface
USB 2.0 / Ethernet
