MM700-1800B
5.0
Brands   :
Category   :เครื่องพิมพ์ Sublimation
Exceptional Speed and Quality with High Stability
Max print speed: 800m2/h
Ask for Infomation
Compare
Interested
Request Quotation


Exceptional Speed and Quality with High Stability
Max print speed: 800m2/h
To meet the diverse tastes and preferences in the textile and apparel markets, printing methods are rapidly shifting from analog to digital.

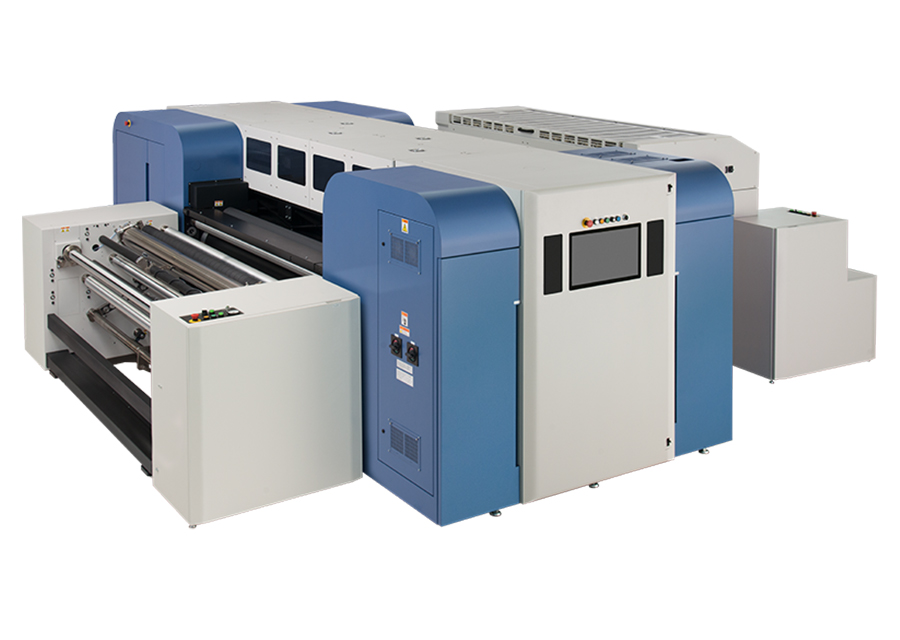

The MM700-1800B is a direct-to-textile digital inkjet printer capable of accommodating high-mix low-volume production, still enabling large-lot printing. Its many features ensure reliable production and excellent print results at high speeds.

Product outlines:
  • A best-in-class print speed: 800 m2/h
    • New head for high speed printing
    • Speed and beauty, achievable printing technology
  • Stable and Reliable Operation
    • Excellent, reliable textile transportation mechanism
    • The wrinkle sensor prevents printer problems
    • The jam sensor reduces damage to printheads
  • Worry-free operation
    • 20-liter ink packs extend the continuous print operation time
    • Temperature adjustment system increases the head performance
    • Wide touch panel display
  • Four ink types are available to accommodate a wide range of materials
    • Four ink types are provided to suit a wide range of applications. The large-capacity 20-liter ink packs support high-speed printing.
  • Mimaki genuine unit
    • Feeding unit, Additional drying heater, Drier / Winder unit, Camera calibration
  • High-performance software RIP "TxLink3 Professional"
    • The TxLink3 Professional offers simple RGB and CMYK color replacement on raster and vector data, as well as the ability to produce different color patterns. Moreover, various color replacement functions can represent desired colors.
Feature
A best-in-class print speed: 800 m2/h
  • New head for high speed printing
    • The MM700-1800B employs 16 printheads arranged in four staggered lines to achieve a best-in-class print speeds of 800 m2/h (*1) and 560 m2/h (*2) in draft and standard modes, respectively.
      *1: 800 m2/h: 8-color, Draft mode, 300 × 300 dpi, 2-pass
      *2: 560 m2/h: 8-color, Standard mode, 600 × 600 dpi, 2-pass
  • Speed and beauty, achievable printing technology
    • Belt meandering and belt feeding amount correction functions
      Meandering sensor allows straight and accurate textile transportation even during high-speed printing. In addition, high degree accuracy control of the textile feeding, 2-pass, high-quality print without banding is possible.
    • Overlap processing
      Banding is reduced through repeatedly gradation color of the edge of the pass. Beautiful and high image quality is possible in high-speed printing mode.



Stable and Reliable Operation
  • Excellent, reliable textile transportation mechanism
    • Direct-to-textile print requires high accuracy and a reliable textile transportation system.
      Wrinkles or drapes occasionally occur on textile when conventional textile transportation systems are used. The MM700-1800B is equipped with a drive roller bar that pastes and flattens the textile onto an adhesive transportation belt without wrinkling or draping by moving synchronously with the belt drive.
  • The wrinkle sensor prevents printer problems
    • The wrinkle sensor detects the wrinkles or drapes occurring in the textile and immediately stops printing to avoid printhead strikes.
  • The jam sensor reduces damage to printheads
    • A highly sensitive sensor attached to the printhead detects even a slightly wrinkled or draped textile surface and prevents a printhead strike or a media jam, thereby reducing printhead damage.
Worry-free operation
  • 20-liter ink packs extend the continuous print operation time
    • 20-liter large-capacity ink packs. The large ink packs ensure longer unattended operation and extended large-lot printing.
  • Temperature adjustment system increases the head performance
    • Two-stage temperature control system:
      a standard for ink distribution tank and head internal heater.
      Maintaining the optional ink viscosity and a stable ink discharge amount in high-speed printing achieves head performance.
  • Wide touch panel display
    • 21.5-inch-wide touch panel display provides simple and easy-to-read printer operation status.
Four ink types are available to accommodate a wide range of materials
  • Four ink types* are provided to suit a wide range of applications. The large-capacity 20-liter ink packs support high-speed printing.

Type Color Characteristic
features		 Applications Compatible
materials		 Note
Reactive C, M, Y, K, Or, Bl, Lm, Lk Molecules of dyes and fibers are stabilized by covalent binding and deliver high color fastness to water, rubbing and light. This ink reproduces accurate colors vibrantly. Apparel, Home furnishing Cotton, hemp, silk, rayon and other materials
Sublimation TBD Dedicated ink for direct sublimation printing. Transfer paper is not required. Soft signage Polyester Available in the future
Pigment TBD Only a heating process is needed for color fixation. Post processes are remarkably simplified because steaming, washing and drying are not required. Home furnishing Cotton, hemp and other materials Available in the future
Acid TBD Excellent vibrant color reproducibility on animal fibers, and on synthetic protein fibers like nylon. Apparel, Home furnishing Wool, leather, silk, nylon and other materials Available in the future
Type Reactive
Color C, M, Y, K, Or, Bl, Lm, Lk
Characteristic
features		 Molecules of dyes and fibers are stabilized by covalent binding and deliver high color fastness to water, rubbing and light. This ink reproduces accurate colors vibrantly.
Applications Apparel, Home furnishing
Compatible
materials		 Polyester
Note
Type Sublimation
Color TBD
Characteristic
features		 Dedicated ink for direct sublimation printing. Transfer paper is not required.
Applications Soft signage
Compatible
materials		 Cotton, hemp, silk, rayon and other materials
Note Available in the future
Type Pigment
Color TBD
Characteristic
features		 Only a heating process is needed for color fixation. Post processes are remarkably simplified because steaming, washing and drying are not required.
Applications Home furnishing
Compatible
materials		 Cotton, hemp and other materials
Note Available in the future
Type Acid
Color TBD
Characteristic
features		 Excellent vibrant color reproducibility on animal fibers, and on synthetic protein fibers like nylon.
Applications Apparel, Home furnishing
Compatible
materials		 Wool, leather, silk, nylon and other materials
Note Available in the future

* One ink type can be selected at the time of purchase to be loaded to the printer; please note that the ink type cannot be changed once it is loaded.



Mimaki genuine unit
  • Feeding unit
    • This unit applies the appropriate tension to the textile to ensure stable textile feeding while using an air brake and a dancer bar.
  • Additional drying heater
    • To prevent an ink set-off while taking up the textile, the additional heater shortens the ink drying time even at high speed printing with high ink density.
  • Drier / Winder unit
    • Winder Equipment
      A stable winding movement enables the taking up of the textile at high speeds without skewing.
    • The standard drying heater
      The heater accelerates ink drying on the textile after printing.*
      * Note that the heater may not completely dry the ink if a large amount of ink is applied.
  • Camera calibration
    • The camera monitors the distance of the textile feed advancement.
      The amount of textile feeding is optimized, which therefore improves the accuracy of the dot placement.
Information
Printhead
On-demand piezo head
(16 printheads: 4 in-line printheads are arranged in 4 staggered lines)
Print resolutions
300dpi, 600dpi, 900dpi, 1,200dpi
Maximum print width
1,800mm (70.9 in)
Maximum media width
1,800mm (70.9 in)
Roll core diameter
5.0 mm or less
Roll outer diameter
200 kg or less
(total weight after printing, including the ink that was printed)
Roll weight
-
Power supply
3-phase AC200 V±10% 103.3 A or 3-phase AC400 V±10% 93.6 A, 50/60 Hz±1 Hz
Operational environment
3-phase AC200 V: 34.8 kVA 3-phase AC400 V: 64.8 kVA
Power consumption
Temperature: 20 – 26 °C (68 – 78.8 °F)
Humidity: 30 – 60% Rh (Non condensing)
Dimensions (W × D × H)
5,200 × 5,750 × 2,000 mm (204.7 × 226.3 × 78.7 in)
Weight
Main Body: 6,500 kg (14,330 lb),
Feeding unit: 1,500 kg (3,306.9 lb),
Drier / Winder unit: 1,160 kg (2,557.3 lb),
Additional Drier Heater: 891 kg (1,964.3 lb)
Software
Software
High-performance software RIP "TxLink3 Professional" is bundled.
Ink Type / Color
Reactive dye ink: Rc600 (C,M,Y,K,Or,Bl,Lm,Lk)
Sublimation dye ink: TBD
Textile pigment dye ink: TBD
Acid dye ink: TBD
Packaging Ink
20L ink pack
Loadable ink color
-
Certifications
UL/CSA60950-1 / CE Marking（Machinery directive, EMC / RoHS)
Interface
Ethernet
