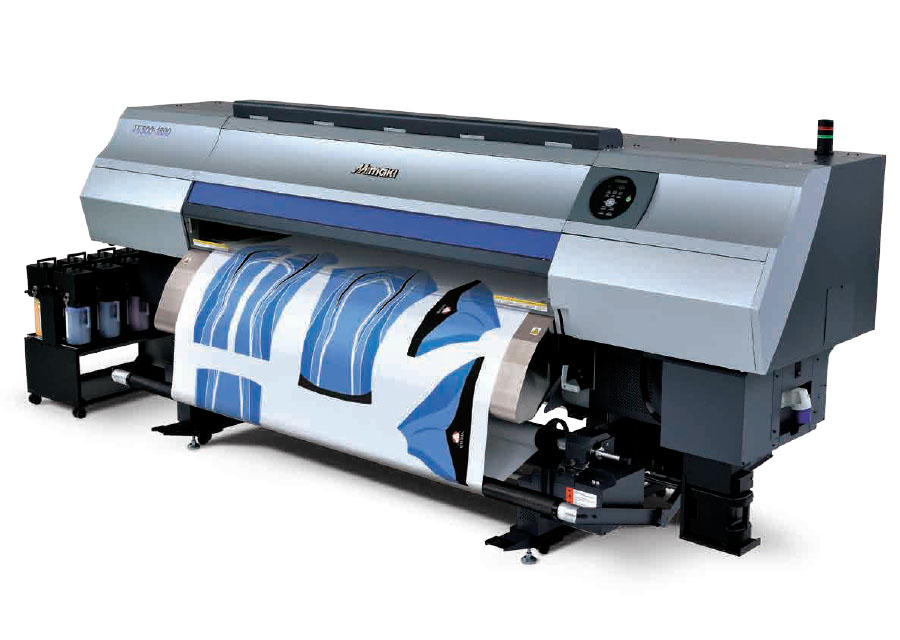

TS500-1800
5.0
Brands   :
Category   :เครื่องพิมพ์ Sublimation
Ask for Infomation


A BOLD STEP FORWARD -UNPARALLELED PRODUCTIVITY-
  • The world’s fastest printing speed of “150m2/h” for transfer paper.
  • Ink degassing module “MDM-20”
  • Heavy rolled media loading
Achieves print speed of 150m2/h on sublimation paper while in high-speed mode.
The newly developed printheads (Six printheads with three staggered) achieve maximum speed.

Mimaki Degassing Module: MDM-20
Mimaki degassing module “MDM-20” eliminates the gasses or bubbles inside the ink. This means nozzle blockage is lessened and the accuracy of ink dot placement is improved. In addition, this module enables the printer to use undegassed bottled inks instead of conventional degassed ink packs, thereby reducing ink costs.

Setting Roll-up media up to 60kg
Roll-up media of up to 60kg and 300mm in diameter can be used. There is no need to frequently change the media, meaning large orders can be handled smoothly and without interruption due to continuous printing.

Mist removal filter
The mist removal filter prevents troubles caused by ink mists and enhances the stability of print operations by suctioning the mist inside the printer and discharging it.



New sublimation ink “Sb300”
The sublimation ink “Sb300” will be simultaneously released with “TS500-1800”. The “Sb300” ink offers a more affordable price than conventional ink. Furthermore, this ink produces brilliant color and dries fast.

Auto Media Feeder (AMF)
Mimaki’s unique “AMF”-system provides stable media feeding and take-up. Because of this, there is no need to constantly monitor the printer.

Information
Printhead
On-demand Piezo head
(6 printheads with 3 staggered conformation)
Print resolutions
600dpi
Maximum print width
1,850 mm (72.8 in)
Maximum media width
1,900 mm (74.8 in)
Roll core diameter
Inside: φ76mm (3.0")
Roll outer diameter
External: φ300mm (11.8"),
Roll weight
60 kg (132bs)
Power supply
Single-phase AC 200~240 V, 20 A or under
Operational environment
Temperature: 20°C-30°C (64-86 °F);
Humidity: 35-65 % RH (non condensing)
Power consumption
Less than 4,800W
Dimensions (W × D × H)
Dimensions (WxDxH)
3,810x1,400x1,700 mm (150.0'x55.1"x66.9*) (*1)
Weight
750kg(1,653lbs)
Software
Software
Bundled RIP software
User friendly RIP "RasterLink 6" comes standard
RASTer LinKE More beautiful and advanced print results are achieved by following a user-frlendly interface that is easy to operate.
Ink Type / Color
S6 color (Bl, M, Y, Bk, LBl, LM)
Packaging Ink
2L botile / each color
Loadable ink color
4
Certifications
VCCI class A, FCC class A, UL60950-1, RoHS directive
CE Marking (EMC, Low voltage and Machinery directive), CB Report
Interface
USB2.0
